Large Remote Control Rubber Track Flail Mower HTM55-hightop

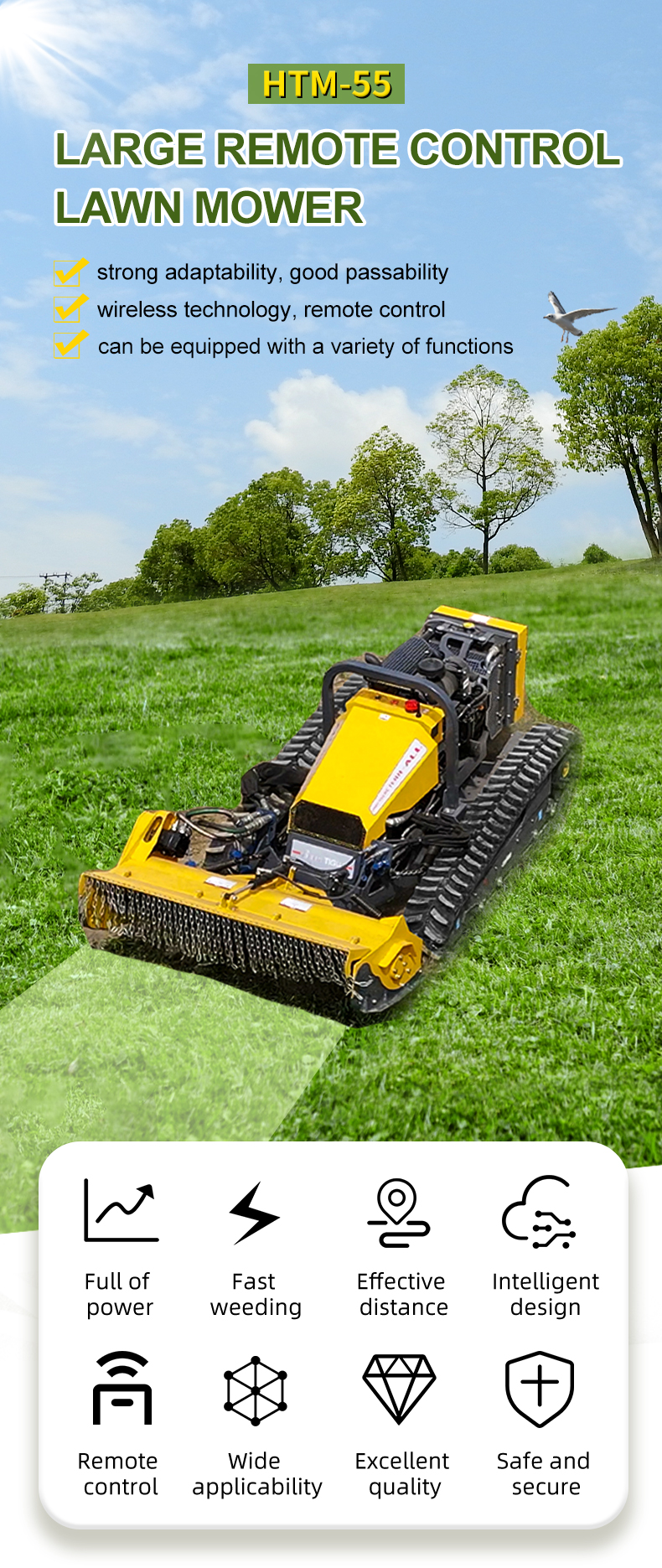

Large Remote Control Rubber Track Flail Mower HTM-55

If you need a heavy-duty large-width wireless remote diesel rubber track flail mower that can efficiently tackle ultra-steep hillsides, golf courses, reservoir embankments and large community green belts, the HTM-55 industrial tracked slope grass shredder solves low efficiency and severe safety hazards of manual small walk-behind lawn cutters. Equipped with an ultra-wide 1400mm single-pass cutting width, this industrial grass cutter adopts original Japanese Yanmar 3-cylinder inline water-cooled diesel engine, rated 40hp high power, maximum torque 107.7Nm, matched with direct injection combustion system to deliver stable powerful output on thick wild grass and rugged high-gradient terrain. The intelligent 2.4G wireless remote control system provides an effective control distance of 200 meters; dual proportional joystick remote operation supports 360° flexible in-situ turning and fine-tuning walking turns, operators can stand on flat safe ground to remotely operate the machine on dangerous 55–60° extreme steep slopes, built-in over-angle automatic shutdown anti-overturn protection to completely eliminate slipping and falling risks during mountain and embankment green maintenance. Adopts full hydraulic drive system composed of triple tandem piston pump + gear pump, independent closed-circuit hydraulic motor for travel and flail head respectively, separate traction circuit and flail head circuit design for stable and independent cutting & walking power output. The machine is fitted with thickened high-grip tooth rubber tracks to boost traction on muddy, loose and steep slope ground; self-cleaning function is optional to reduce regular maintenance frequency. Whole machine heavy weight reaches 1250kg with reinforced heavy frame, strong load capacity and excellent terrain passability. Travel speed and flail head speed can be precisely adjusted via remote controller without stopping the machine, the 1400mm wide cutting deck drastically cuts repeated back-and-forth mowing cycles and lifts daily construction output greatly. With super-large single cutting coverage and industrial heavy-duty structure, HTM-55 remote crawler flail mower is widely applied in golf courses, soccer fields, community municipal greening, reservoir embankments, mountain wild grassland and large garden lawns, becoming the preferred high-efficiency heavy grass cutting equipment for large landscaping engineering companies, golf management teams and water conservancy green contractors.

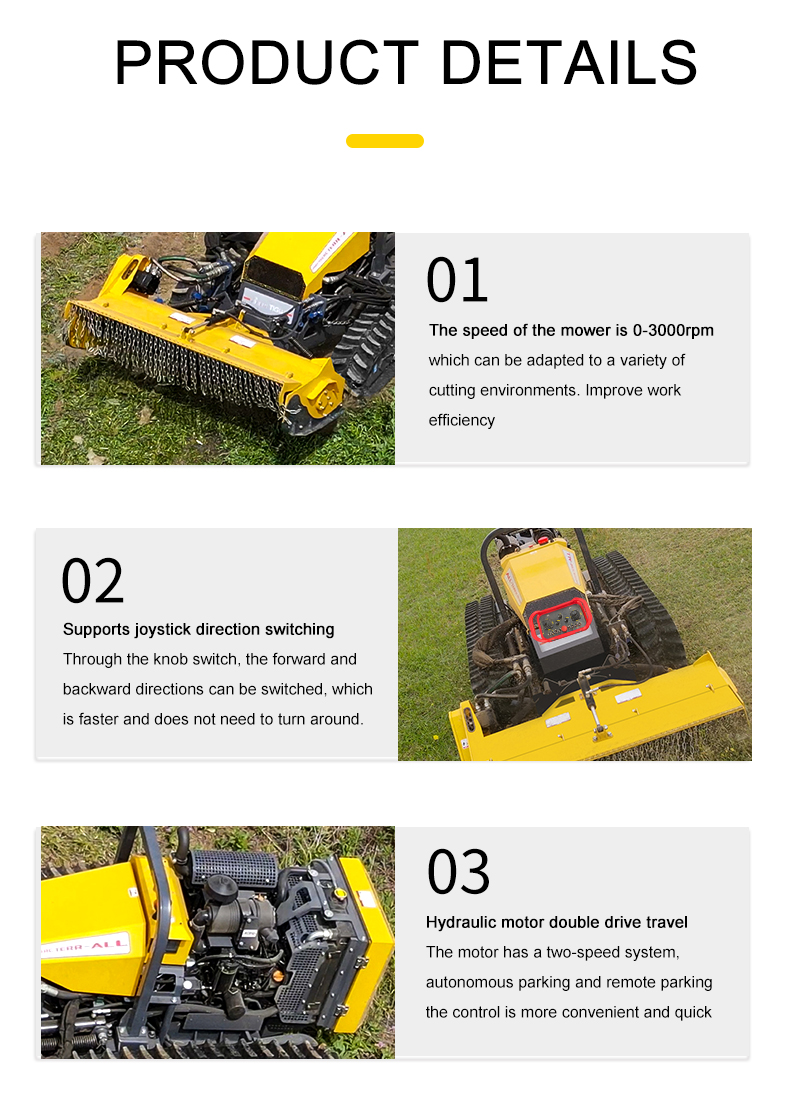

Product Details

Large Remote Control Rubber Track Flail Mower Introduction

HTM-55 heavy industrial remote tracked flail mower upgrades to 1400mm ultra-wide cutting deck and 60° super climbing heavy rubber track chassis, specially customized for large-area commercial landscaping and high-gradient long-distance embankment mass maintenance. The imported Yanmar 40hp large-displacement three-cylinder diesel power outputs stable constant high torque to clear thick tall weeds in one pass, cutting repeated secondary trimming work and greatly lifting daily project construction volume.
Low-ground-pressure thick tooth full rubber crawler design avoids damaging lawn root system and soft green belt soil when traveling across vast landscape areas; all travel speed, flail head speed and turning functions can be adjusted directly via dual joystick remote controller without stopping the machine, significantly improving field operation continuity and efficiency. The integrated industrial dual-joystick remote control panel supports one-key adjustment of all working parameters, beginners can fully master complete operation within minutes without professional technical training.
Large-size heavy crawler body with 1250kg dead weight delivers strong traction to tackle rugged mountain wild grassland and high steep reservoir dykes that medium-small light tracked mowers cannot handle. With 200m ultra-long wireless remote, 60° extreme climbing, 1400mm wide cutting and imported Yanmar 40hp high-power advantages, this HTM-55 all-terrain remote slope lawn cutter reduces labor cost and safety risks for commercial large landscape, golf and water conservancy embankment green projects. It is a cost-effective heavy-duty automatic grass cutting solution for large-scale landscaping engineering firms and golf course management enterprises worldwide.

Large Remote Control Rubber Track Flail Mower Feature

Model: HTM-55 Heavy Duty 200m Remote Control Diesel Rubber Track Industrial Flail Mower

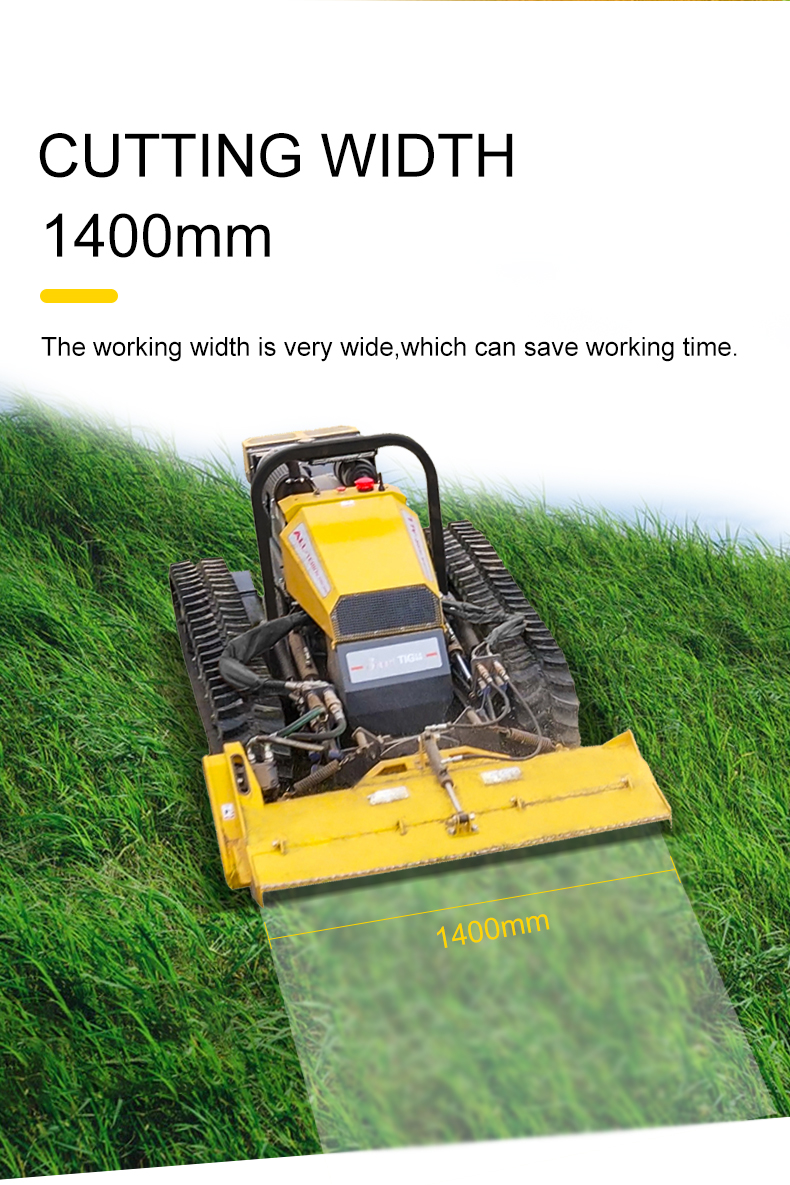

Single Pass Cutting Width: 1400mm ultra-wide large-area flail cutting deck

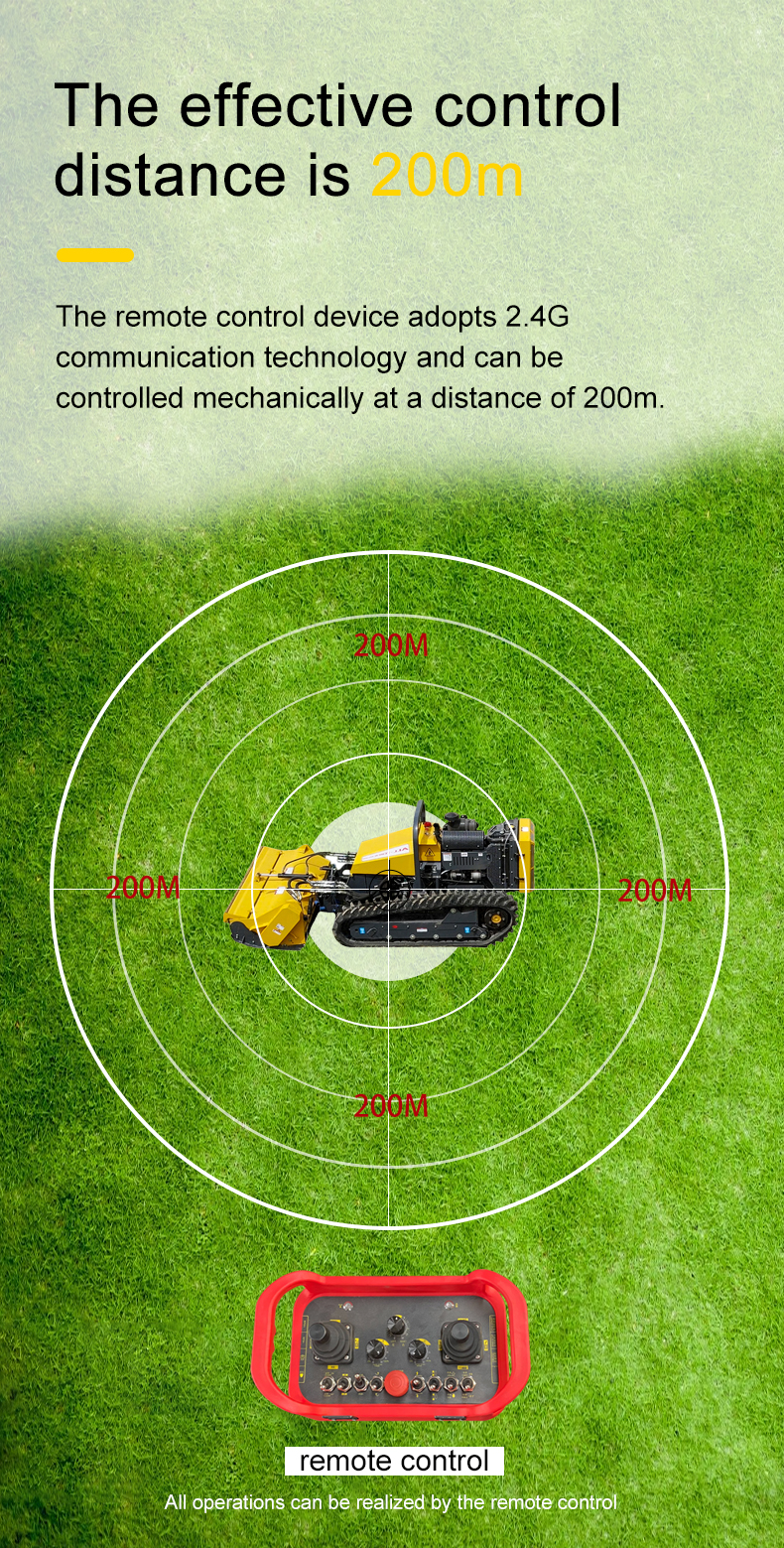

Max Effective Wireless Remote Distance: 200 meters 2.4G dual joystick intelligent remote system

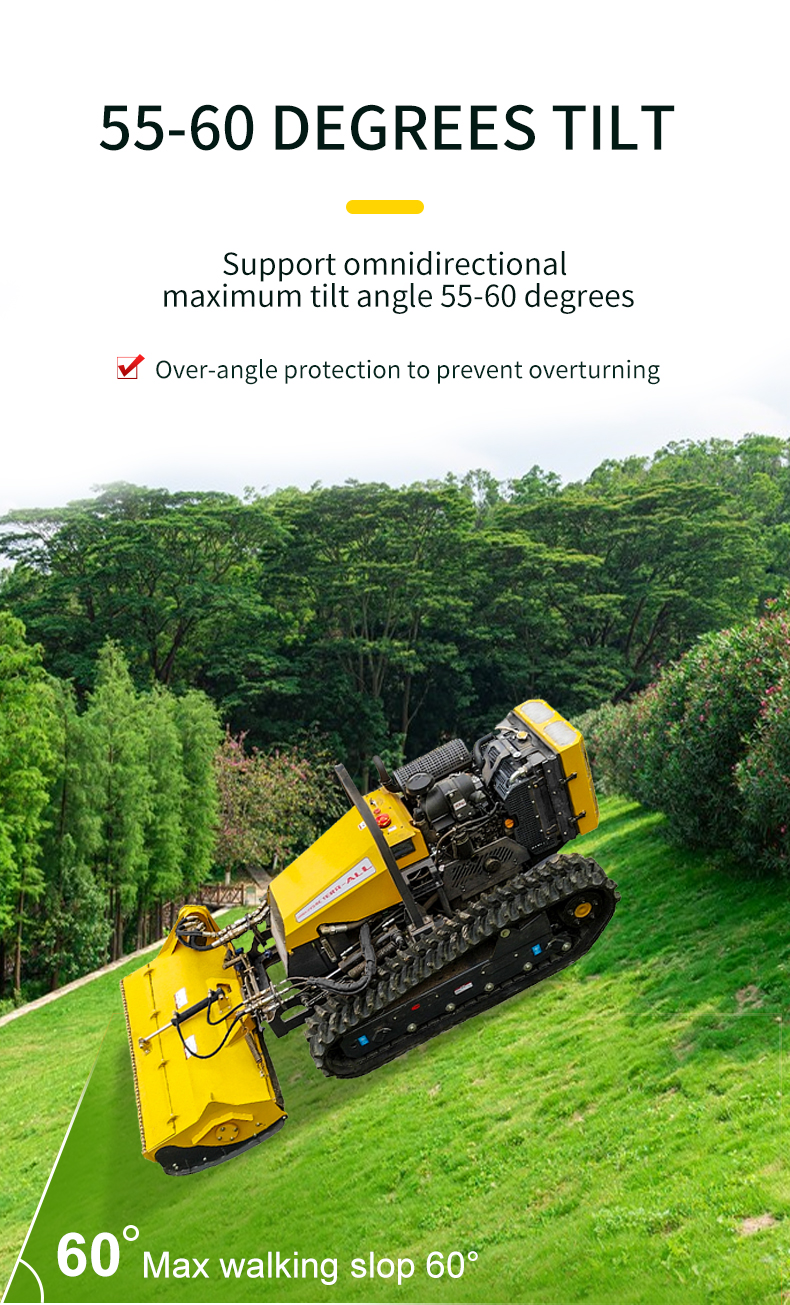

Maximum Safe Working Climbing Slope: 0–60° ultra steep hillside stable operation, auto shutdown over-angle protection
Overall Dimension (LengthWidthHeight): 2900mm * 1500mm * 1300mm
Whole Machine Net Weight: 1250kg heavy reinforced anti-roll frame
Engine Brand & Spec: Original YANMAR 3-cylinder inline water-cooled diesel engine, 40hp / 107.7Nm max torque, direct injection
Fuel Tank Capacity: 28 liters
Hydraulic Configuration: Triple tandem piston pump + gear pump, independent travel & flail head closed hydraulic circuits

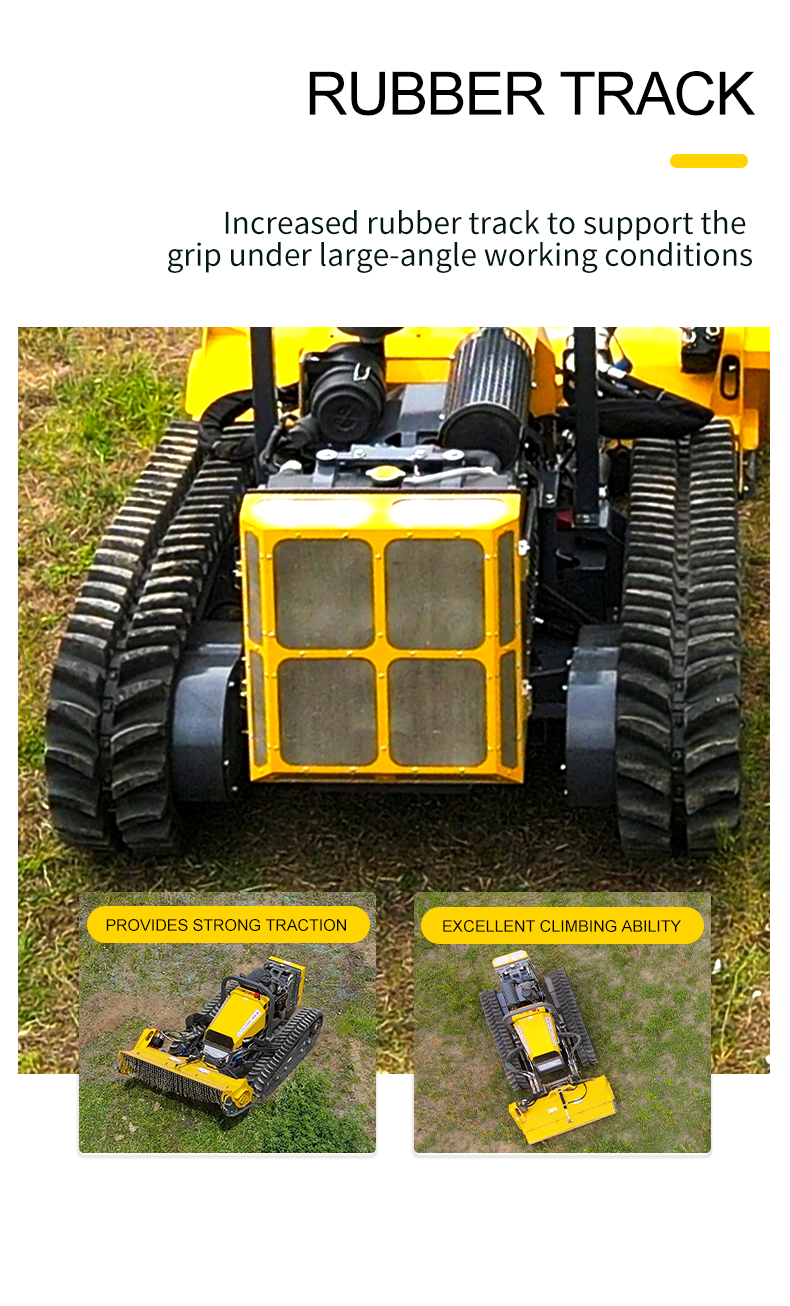

Travel Chassis: Upgraded thick high-grip tooth rubber track all-terrain heavy chassis

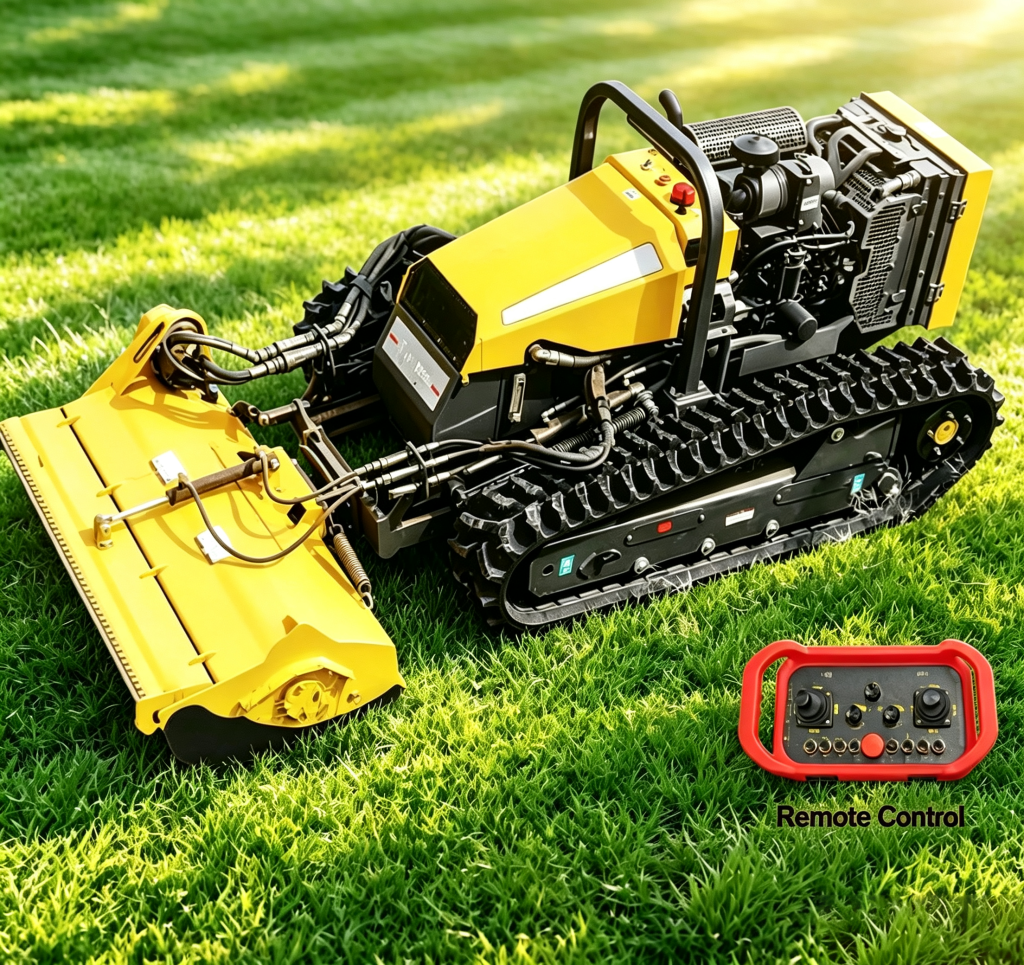

Remote Control Hardware: Dual proportional joystick transmitter, rechargeable interchangeable battery, frequency >434MHz

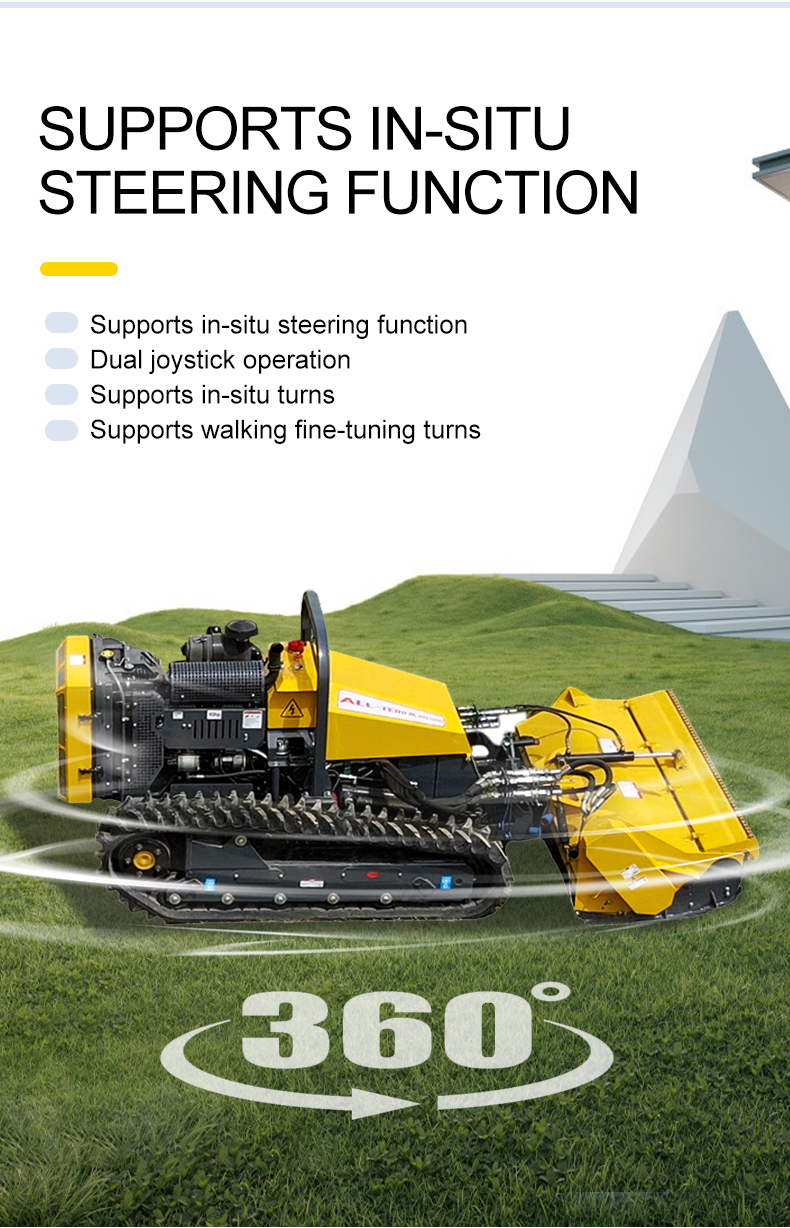

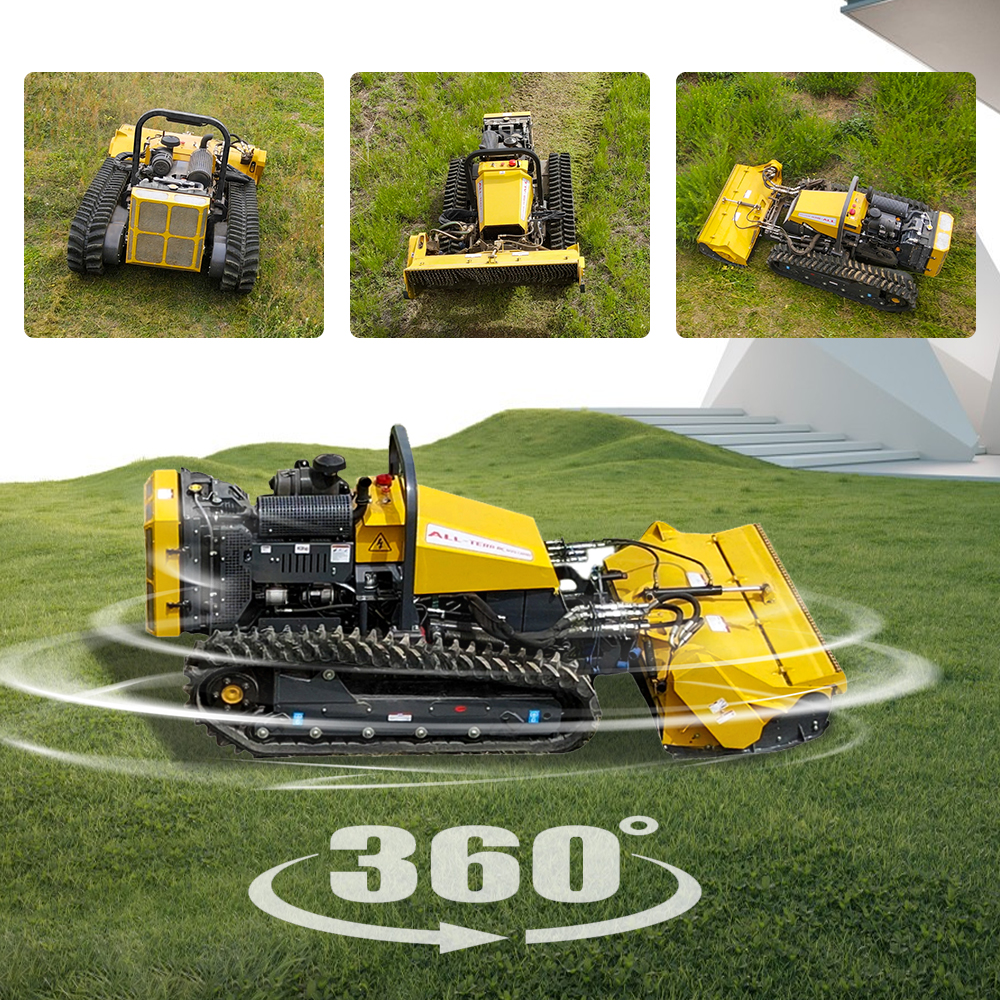

Core Mobility Function: Support 360° in-situ free rotation, fine-tuning walking turning
Auxiliary Function: Optional self-cleaning system, manual / automatic parking dual mode
Load & Oil Circuit Parameter: Max attachment capacity 750kg, system oil capacity 40L
Core Advantages: 1400mm wide cut, 60° super climbing, 200m long remote, imported Yanmar diesel power, full hydraulic drive, anti-overturn protection
Applicable Scenes: Golf course, soccer field, community municipal greening, reservoir embankment, mountain wild grassland, large garden lawn, scenic hillside trimming

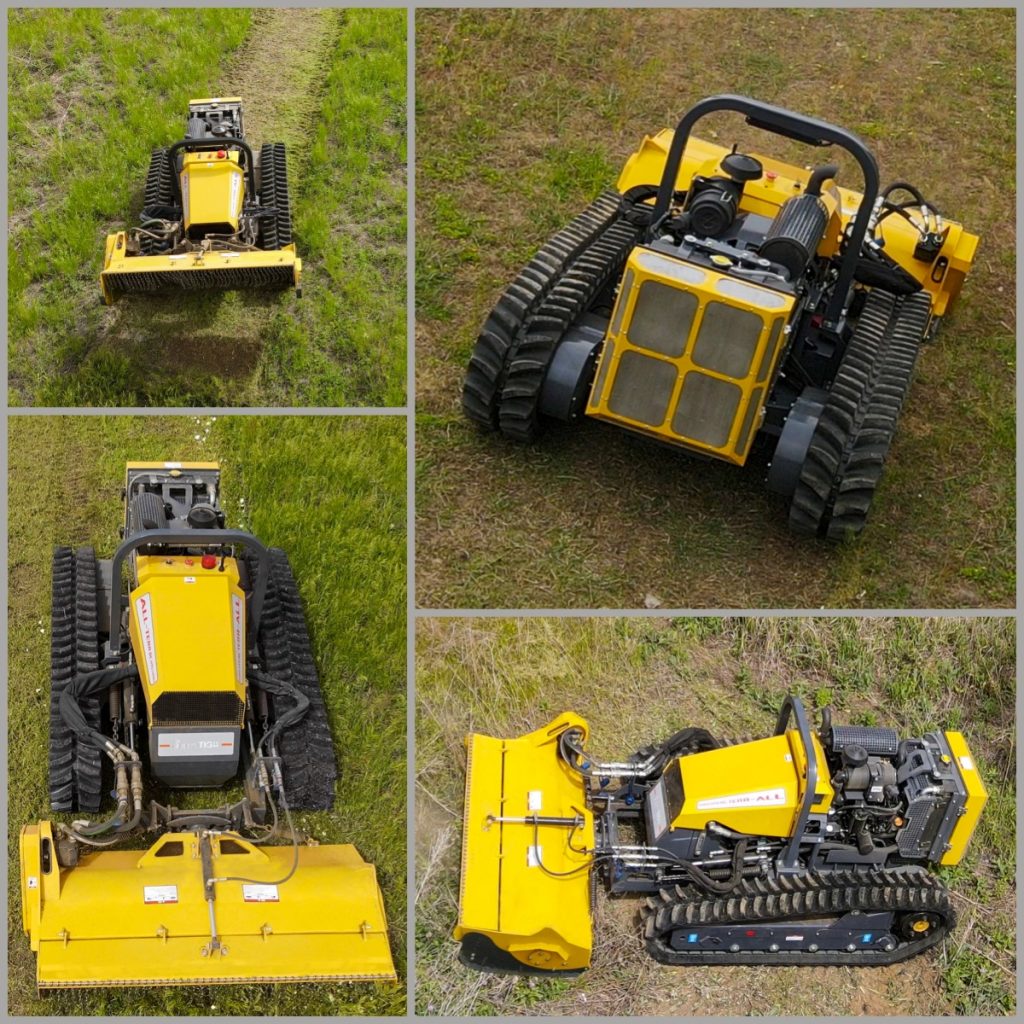

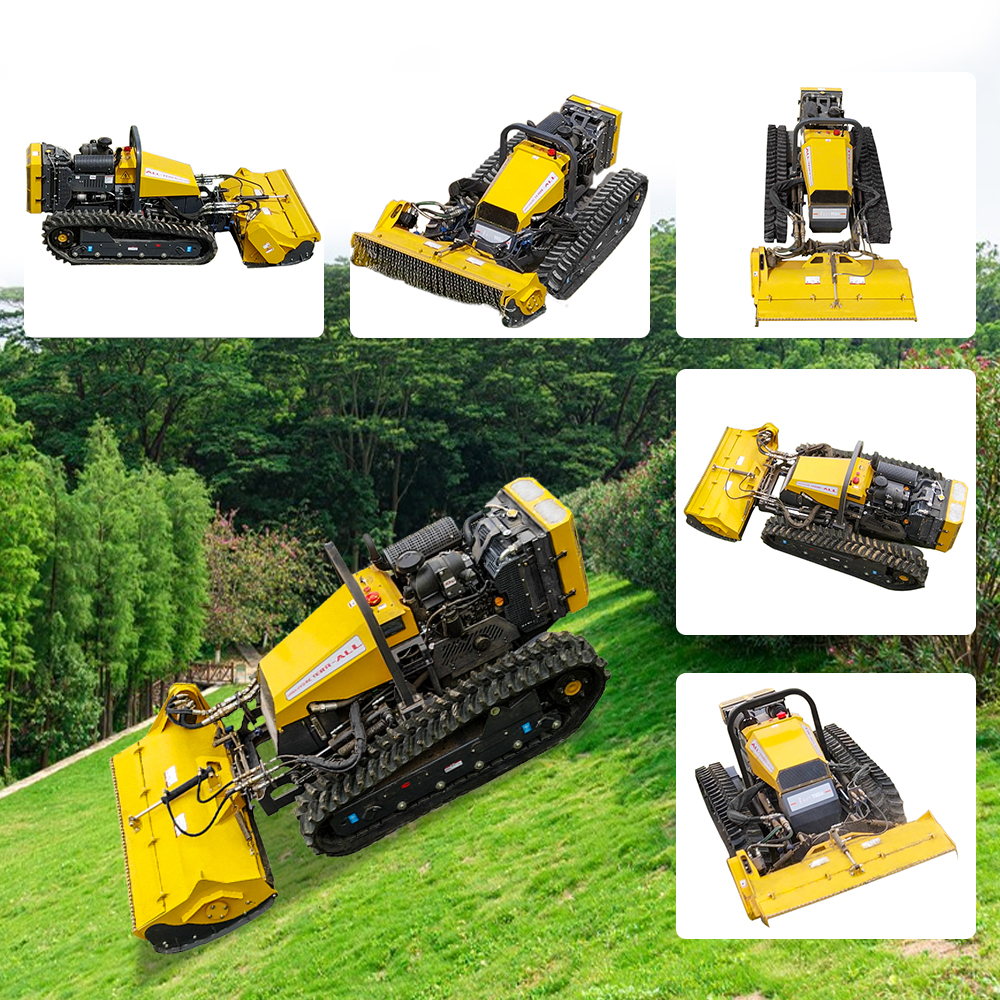

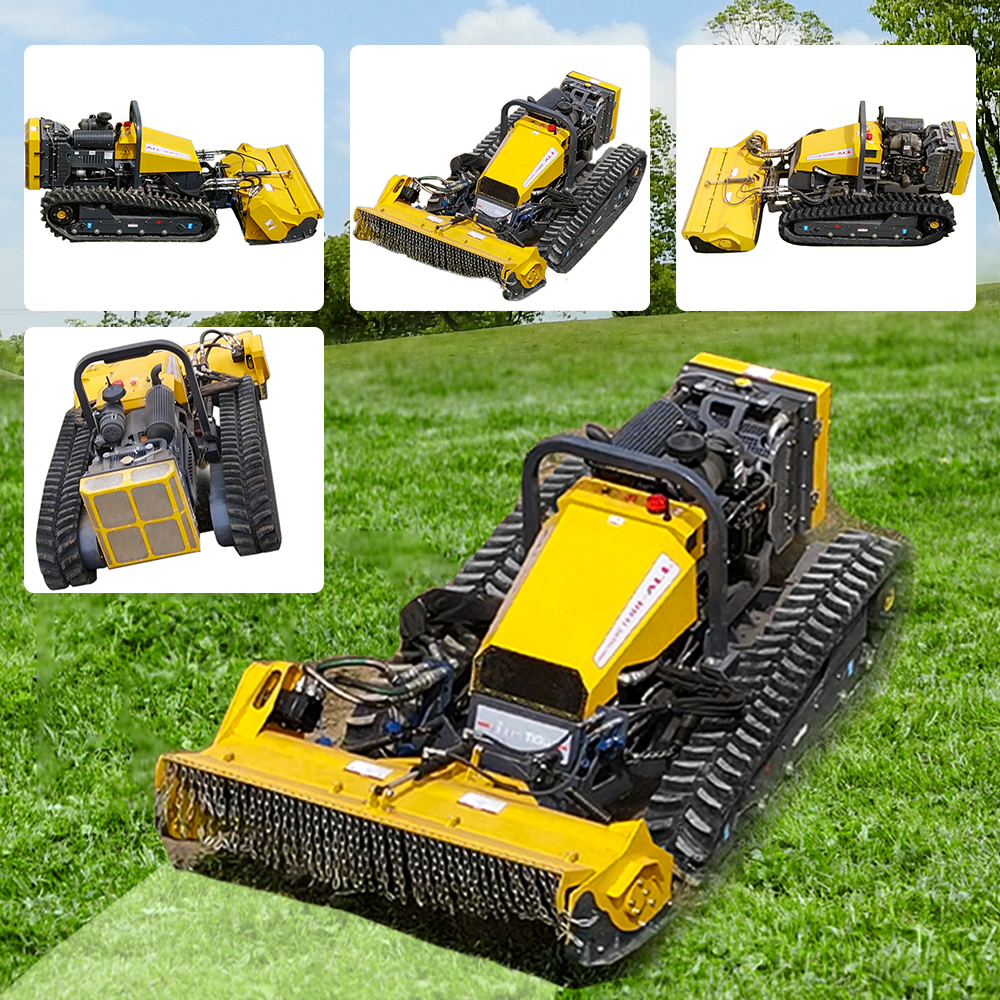

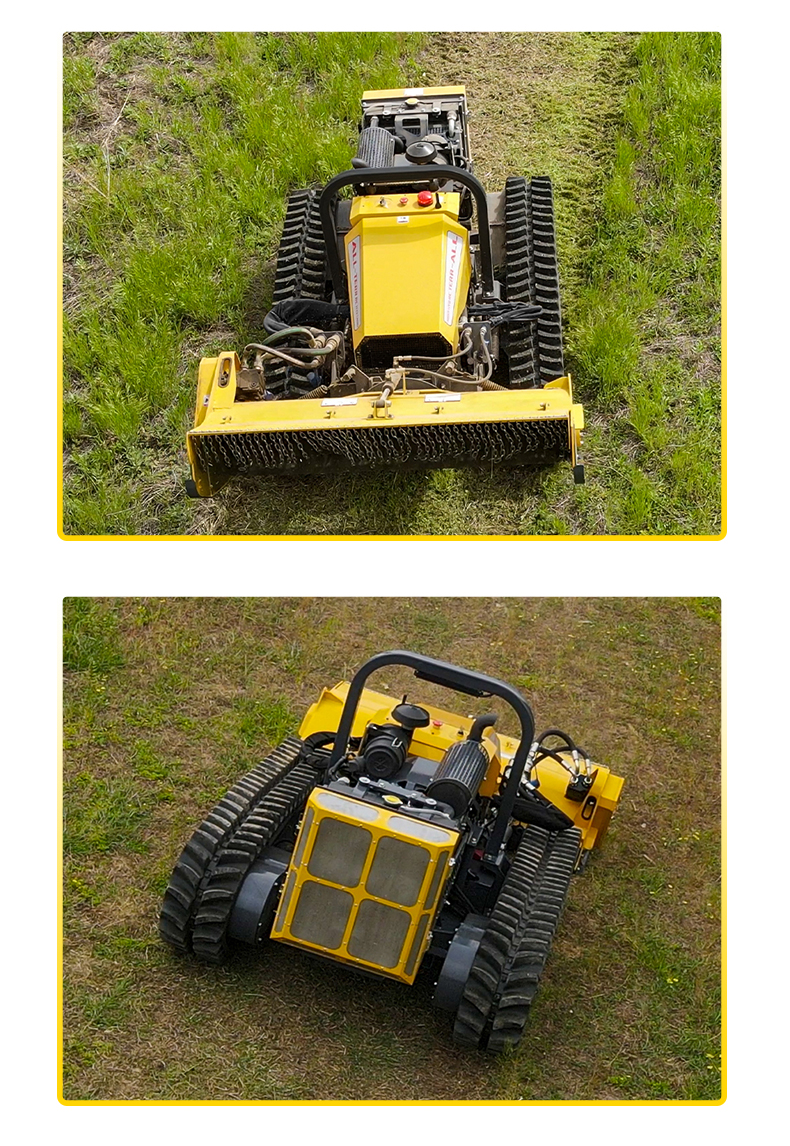

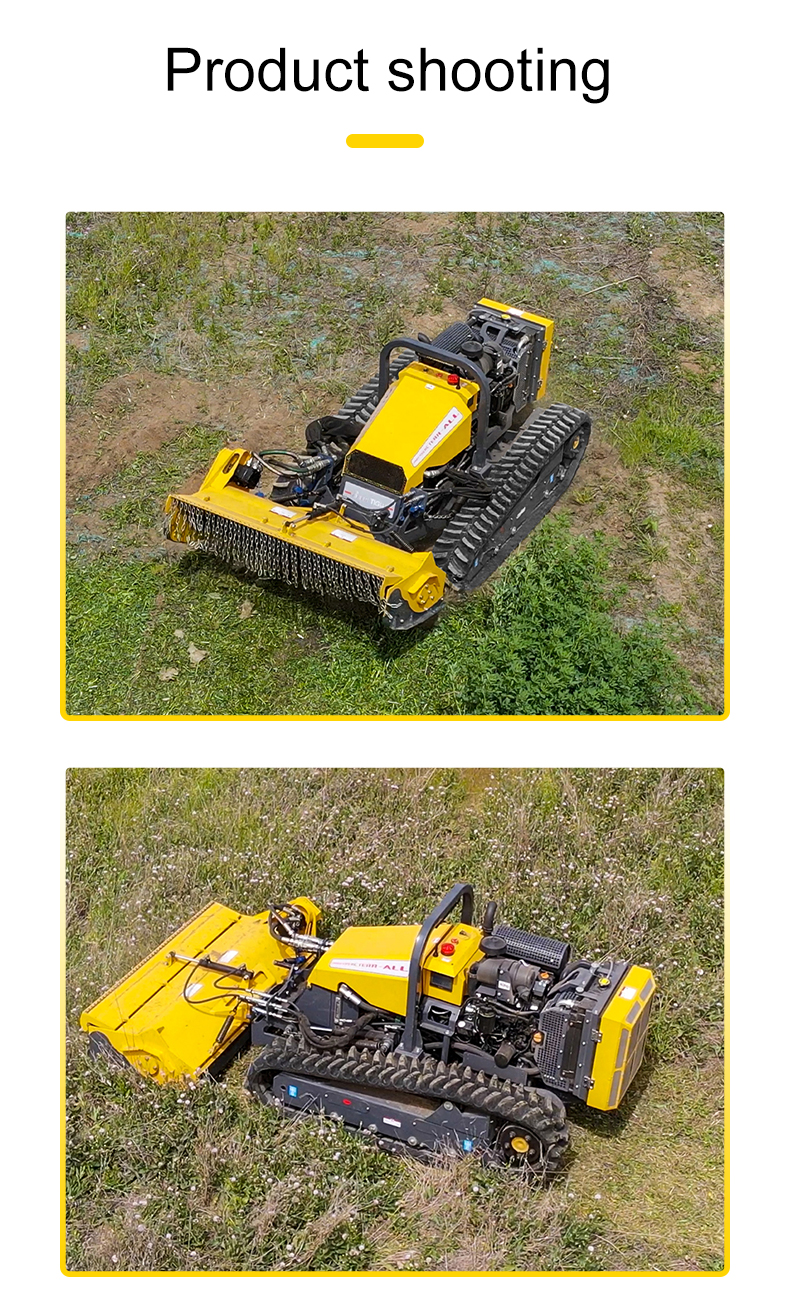

Large Remote Control Rubber Track Flail Mower Images

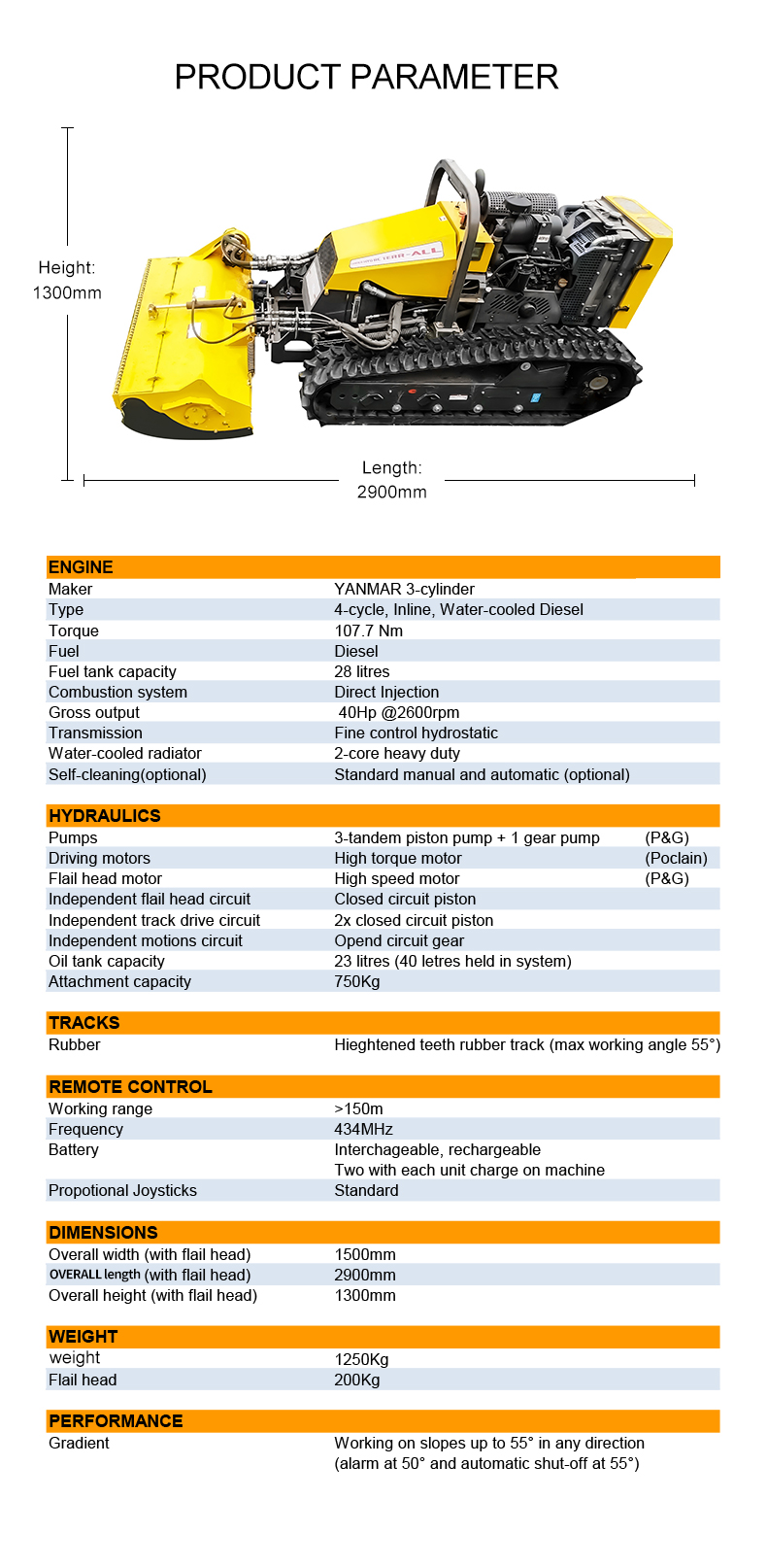

Large Remote Control Rubber Track Flail Mower Parameter

Parameter Name	Exact Original Parameter Value From Product Long Poster
Product Model	HTM-55 Large Remote Control Diesel Rubber Track Industrial Flail Mower
Single Pass Cutting Width	1400 mm
Effective Wireless Remote Control Distance	200 m (2.4G dual joystick remote)
Maximum Safe Working Climbing Slope	60°, auto shutdown anti-overturn protection at 55°
Overall Dimension (LWH)	2900mm * 1500mm * 1300mm
Whole Machine Net Weight	1250 kg
Engine Model	YANMAR 3-cylinder inline water-cooled diesel engine
Engine Rated Power / Max Torque	40Hp / 107.7 Nm
Combustion Mode	Direct injection
Fuel Tank Capacity	28 L
Hydraulic System Composition	Triple tandem piston pump + gear pump, independent travel & flail head closed hydraulic circuits
Travel Chassis Type	Thickened high-grip tooth rubber track heavy all-terrain chassis
Remote Control Configuration	Dual proportional joystick, interchangeable rechargeable battery, frequency >434MHz
Core Turning Function	360° in-situ free rotation, fine-tuning walking turns
Optional Auxiliary Function	Self-cleaning system; manual / automatic dual parking mode
Max Attachment Load Capacity	750 kg
System Hydraulic Oil Volume	40 L
Core Product Advantages	1400mm ultra-wide cut, 60° super climbing, 200m long remote, imported Yanmar diesel power, full hydraulic drive, anti-overturn safety protection
Main Applicable Terrain & Scenes	Golf course, soccer field, community municipal green, reservoir embankment, mountain wild grassland, large garden lawn, scenic hillside trimming
